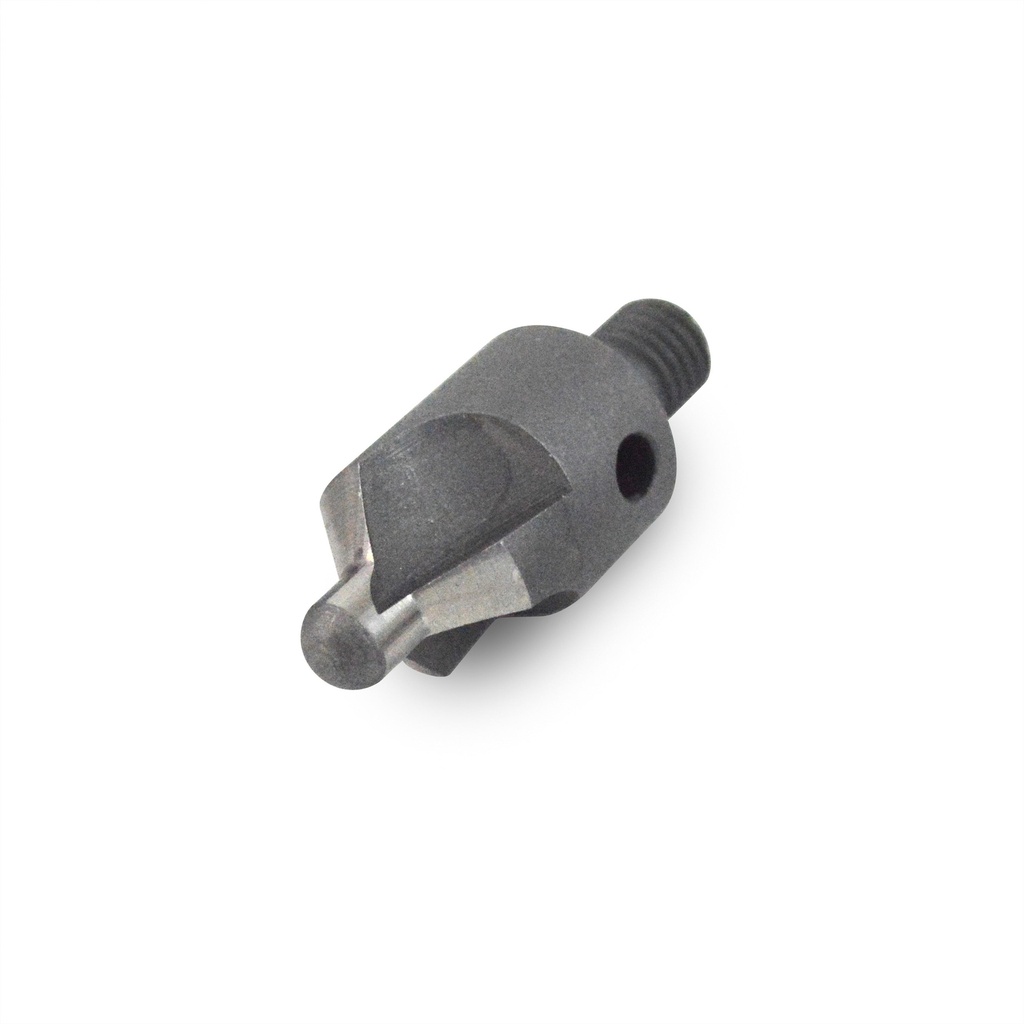

Countersink Cutter
- Sold individually.
- 100 degree, 3-flute.
- 1/2" Body Diameter.
- 1/4-28 threaded shank.
- Use with micro stop units (CT-196, CT-360& CT-365).
- A new, high quality cutter.
CC40 - #40 drill size for -3 or 3/32" rivet - Pilot size 0.098"
CC30 - #30 drill size for -4 or 1/8" rivet - Pilot size 0.128"
CC6 - #28 drill size for #6 or 6-32 screw - Pilot size 0.140"
CC8 - #19 drill size for #8 or 8-32 screw - Pilot size 0.166"
CC10 - #10 drill size happens to coincide with #10 or 10-32 screw - Pilot size 0.193"
CC12 - #12 drill size for tight tolerance -3 or 3/16" AN bolts - 0.189"
CC120-30 - Same as #30 above but cutting angle of 120deg. rather than 100deg.
CC1440M - has been re-ground with a taper to the pilot (as called out in the Van's RV-14 plans) so you do not have to try to do it yourself.
